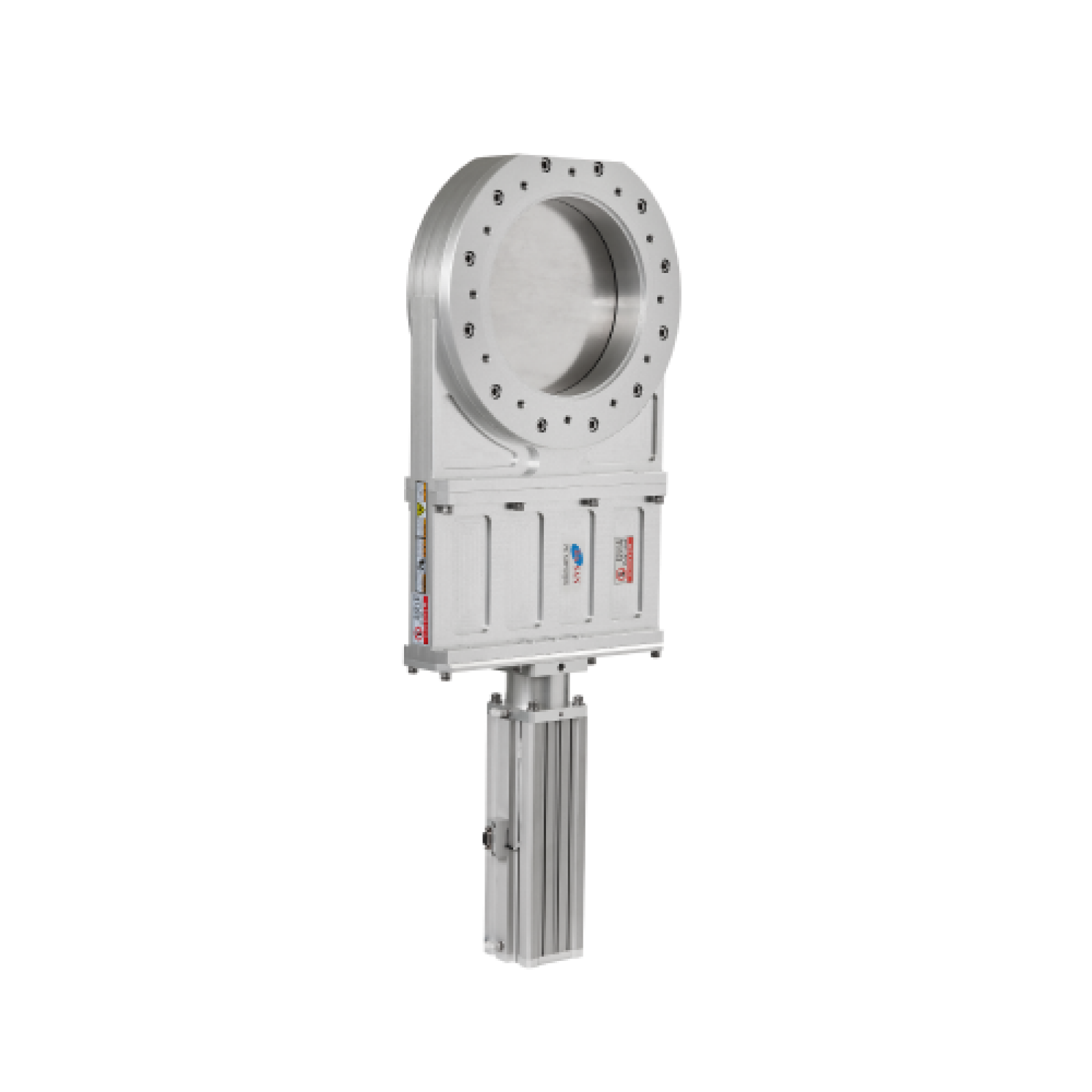

I-Motion Gate Valve (DIV)
DIV 200~400
- Feature
- Noise & Vibration Free
- Optimization for Turbo & Cryo Pump
- Very High Purity Valve
- Open / Close Move for any Pressure
- Very Easy Set-up & Maintenance
- General Specification
- Body Material : AI 6061 or SUS 304 / Actuator : AI 6061
- Leak Rate : < 1x10⁻⁹ mbar. l/s (1x10⁻¹⁰ Pa m³/s)
- Vibration : < 0.35㎨
- Operation : 4~8 bar
- WWarranty : 200,000 Cycle
- Flange Type : ISO-K, ISO-F, JIS

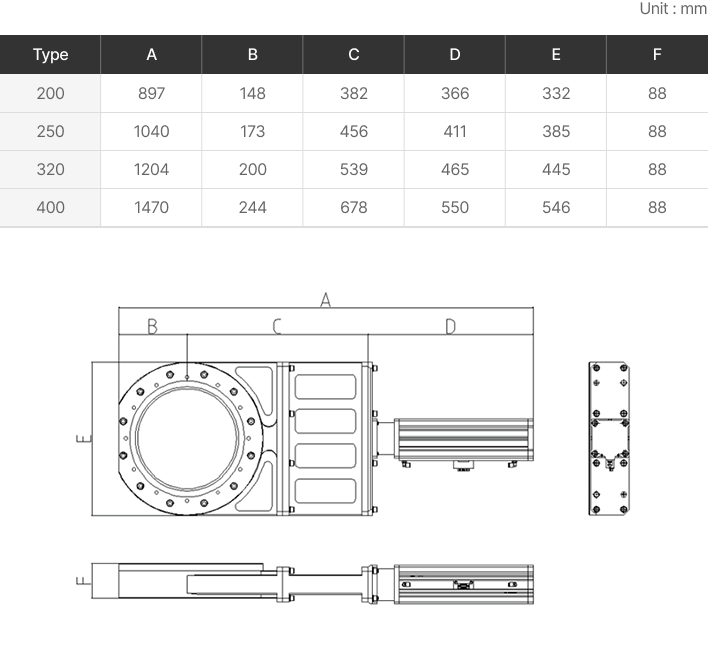

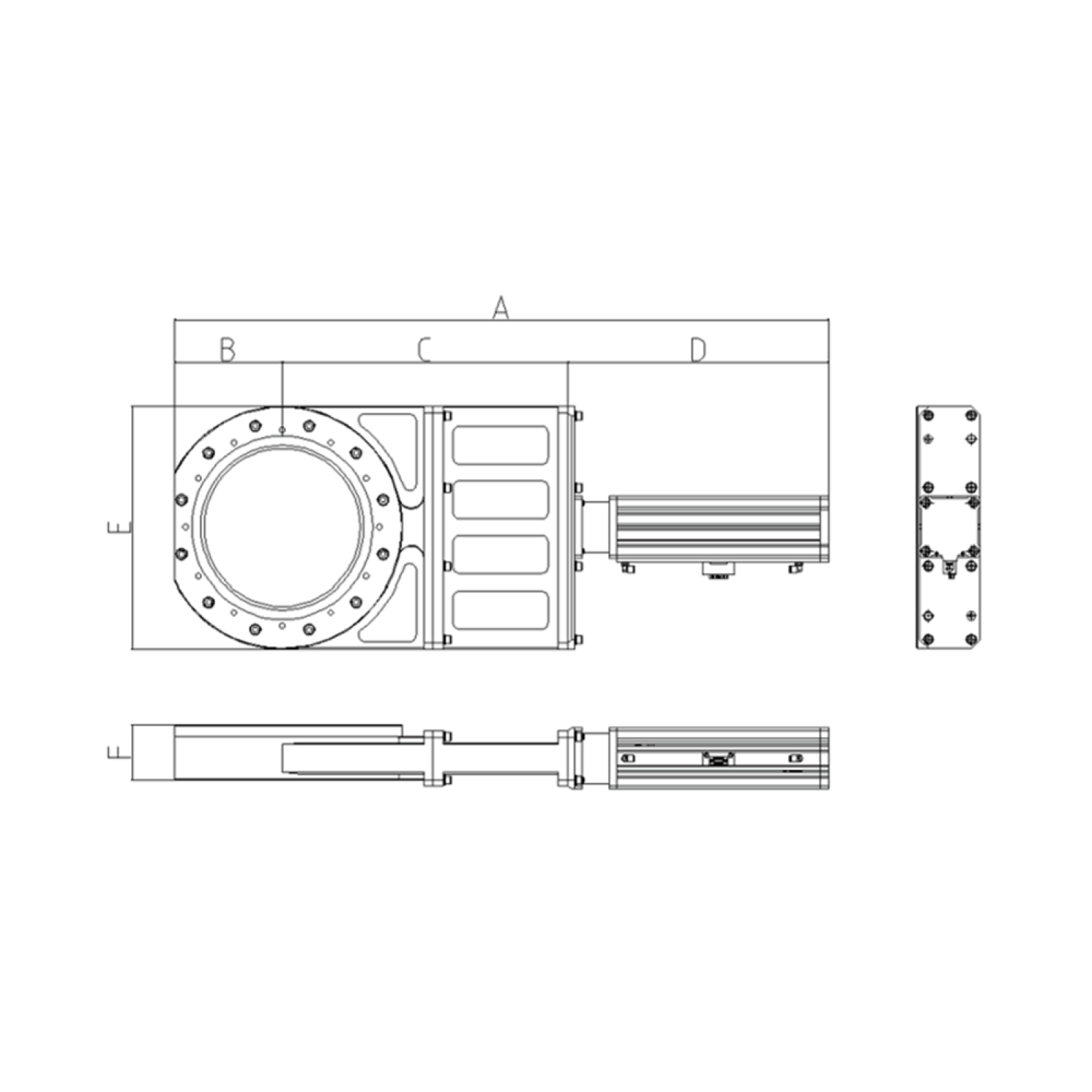

- Dimension
-
