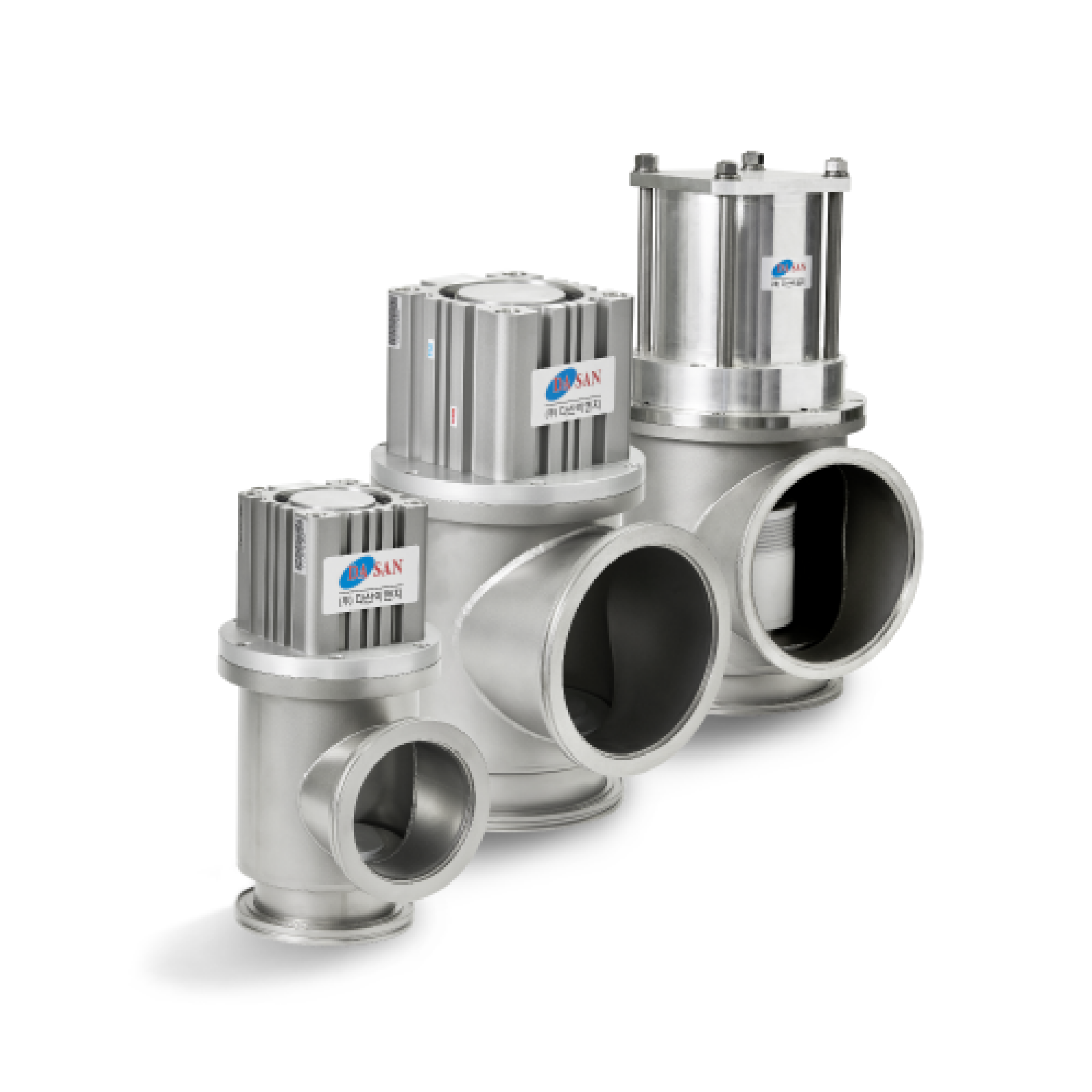

Angle Gate Valve (DAV)
DAV 160~250
- Feature
- Very Low Noise
- Very High Purity Valve
- Very Low Vibration
- Very Easy Set-up & Maintenance
- Very Compact Design
- General Specification
- Body Material : SUS 304
- Leak Rate : < 1x10⁻⁹ mbar. l/s (1x10⁻¹⁰ Pa m³/s)
- Vibration : < 1.25㎨
- Operation : 5~8 bar
- Warranty : 1,000,000 Cycle
- Flange Type : ISO-K, ISO-F, JIS, CF

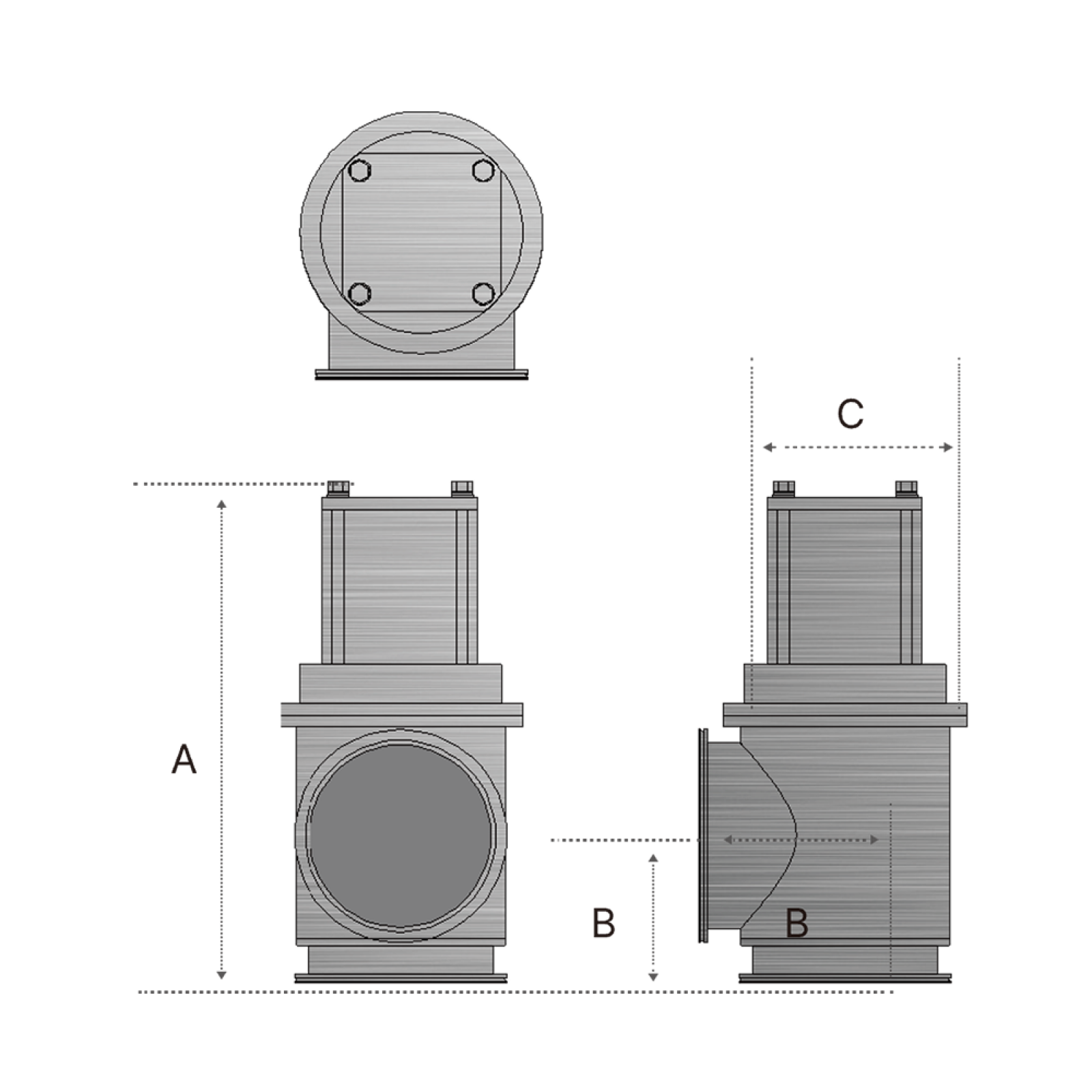

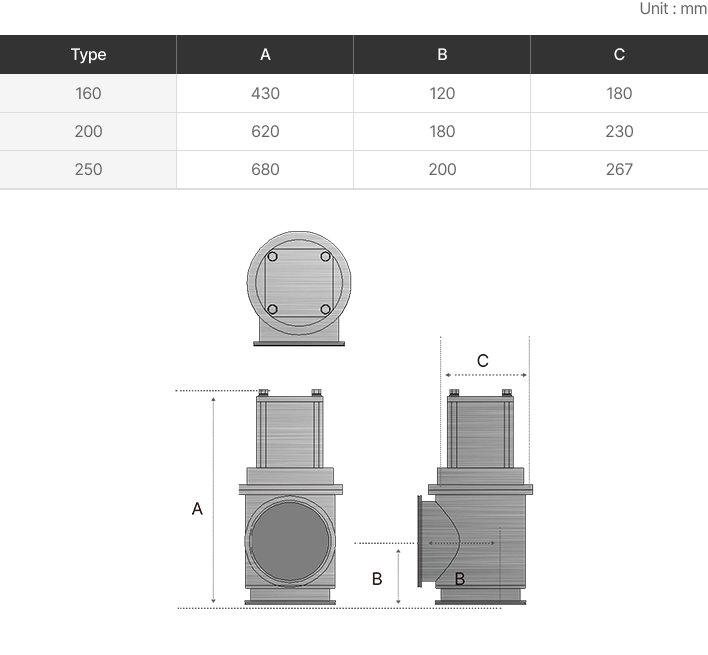

- Dimension
-
