Auto Gate Valve (DGV)
DGV Standard 500~750
- Feature
- Very Low Noise
- Very High Purity Valve
- Very Low Vibration
- Very Easy Set-up
- Very Compact Design
- General Specification
- Body Material : SUS 304
- Leak Rate : < 1x10⁻⁸ mbar. l/s (1x10⁻⁹ Pa m³/s)
- Vibration : < 1.25㎨
- Operation : 6~9 bar
- Warranty : 20,000 Cycle
- Flange Type : ISO-K, ISO-F, JIS, CF

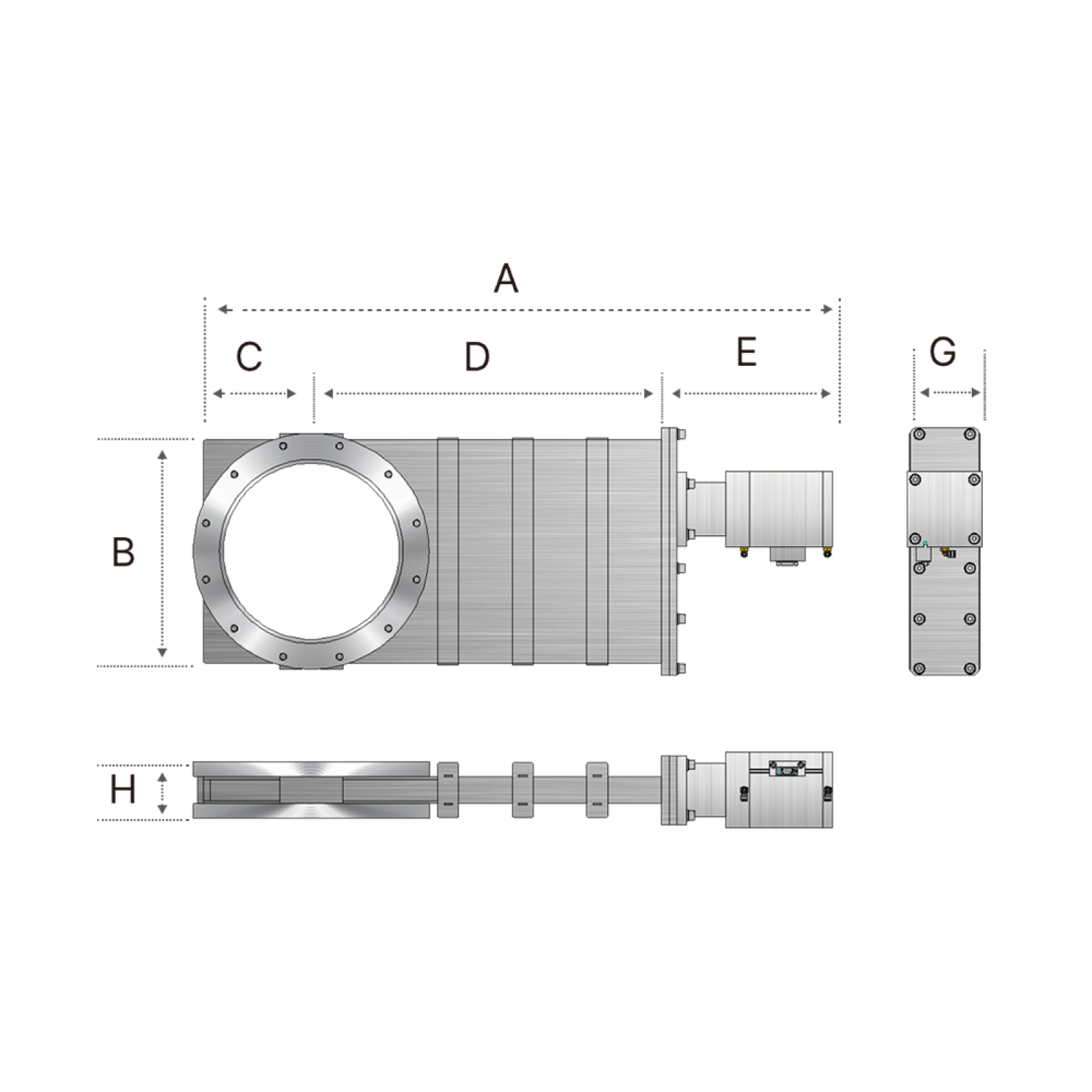

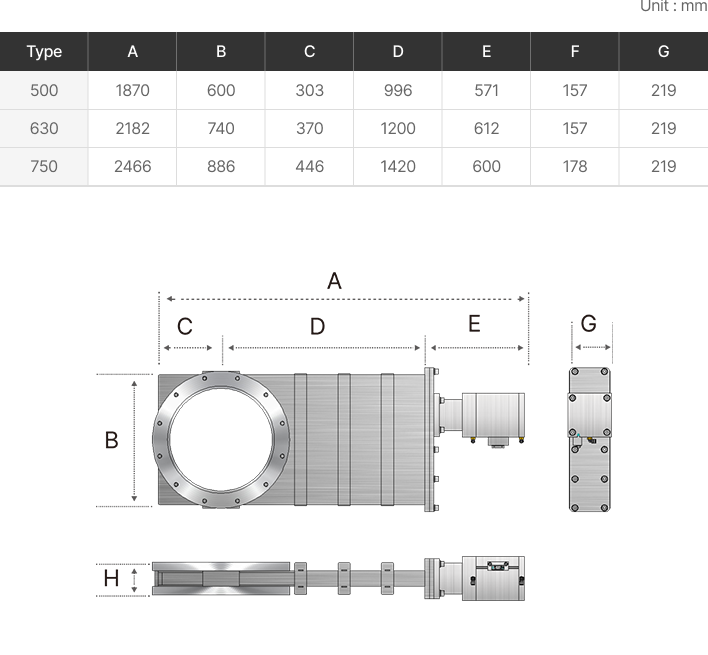

- Dimension
-
