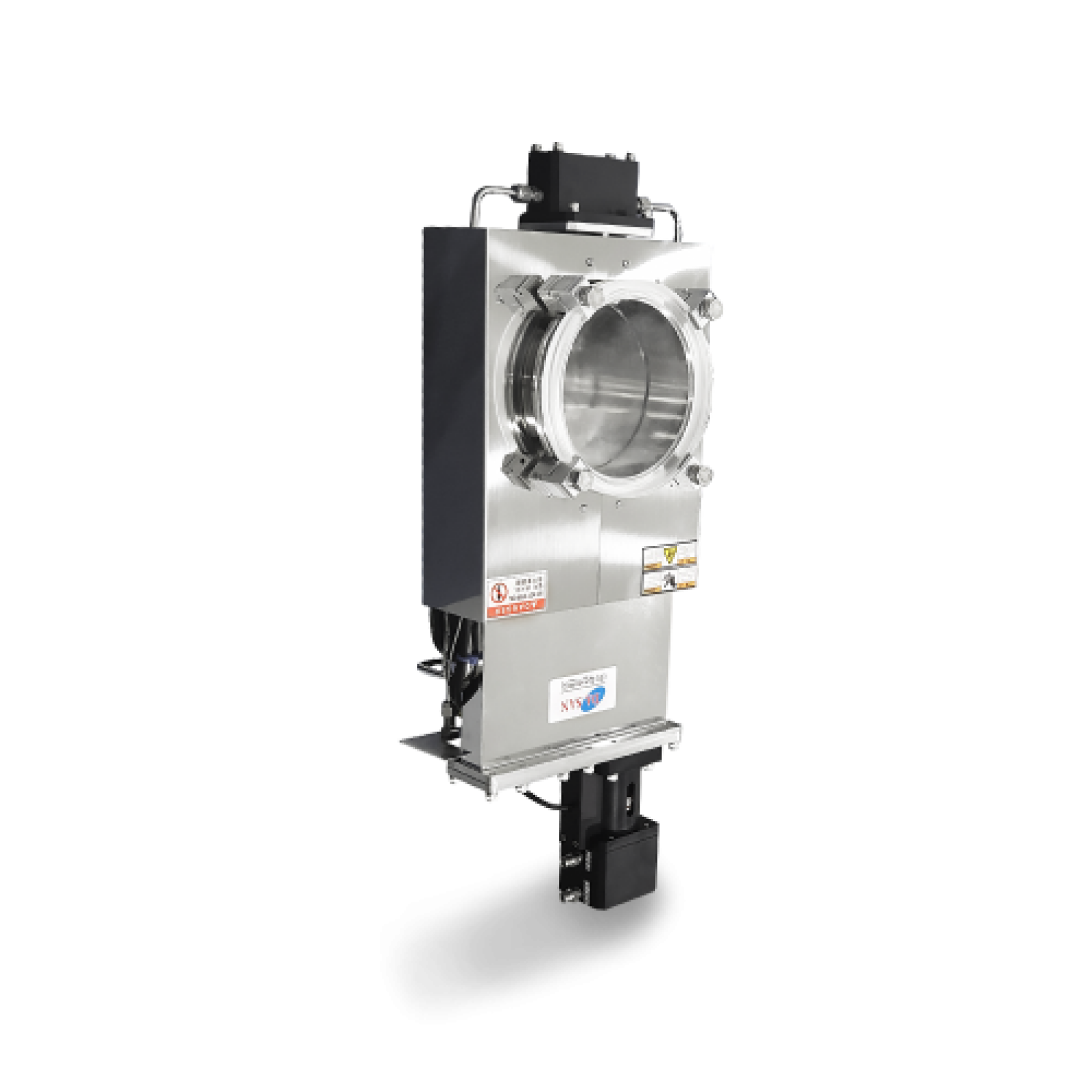

Powder Protection Gate Valve (DPV)
DPV Slide 80~200
- Feature
- Very High Speed valve
- Very Compact Design
- High Performance Heating Impact
- General Specification
- Body Material : SUS 304
- Leak Rate : < 5x10⁻⁸ mbar. l/s (5x10⁻⁹ Pa m³/s)
- Operation : 4~8 bar
- Warranty : 50,000 Cycle
- Flange Type : ISO-K, ISO-F

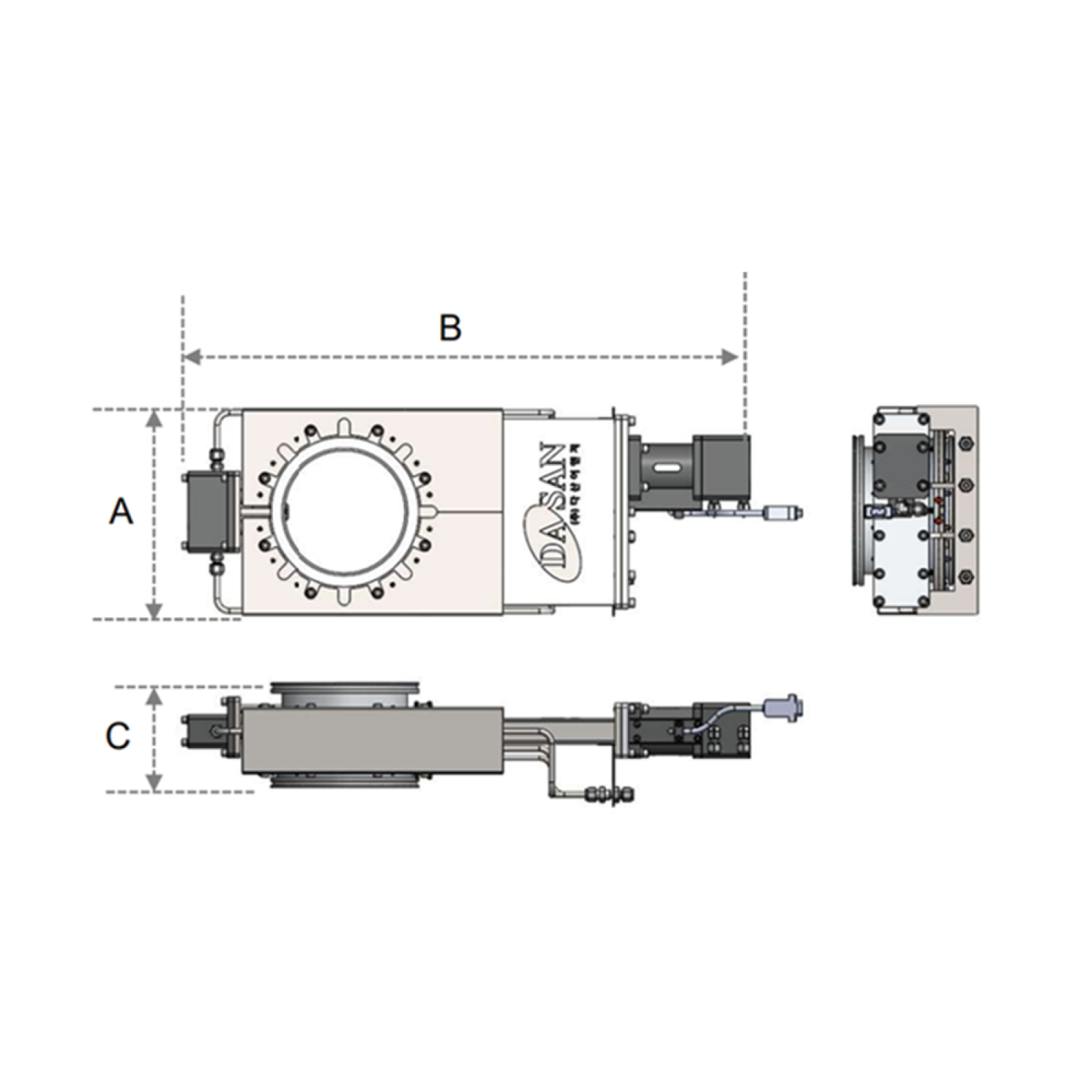

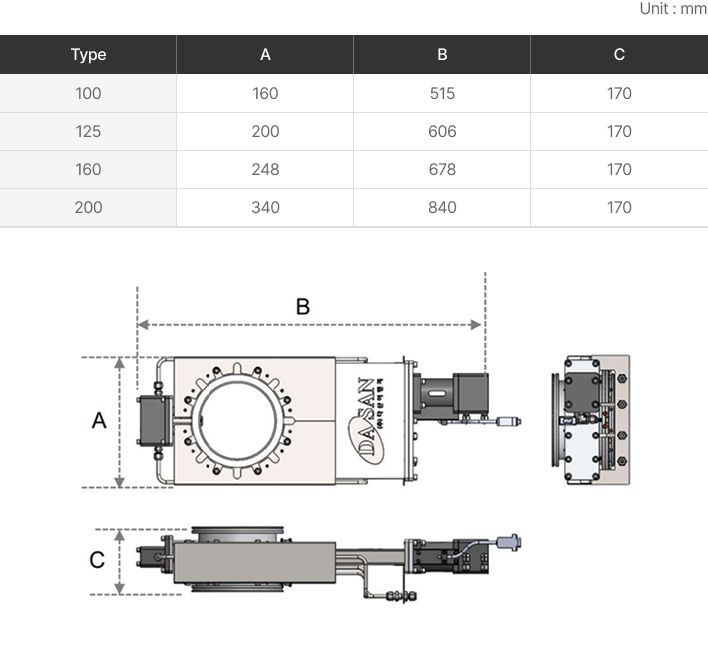

- Dimension
-
