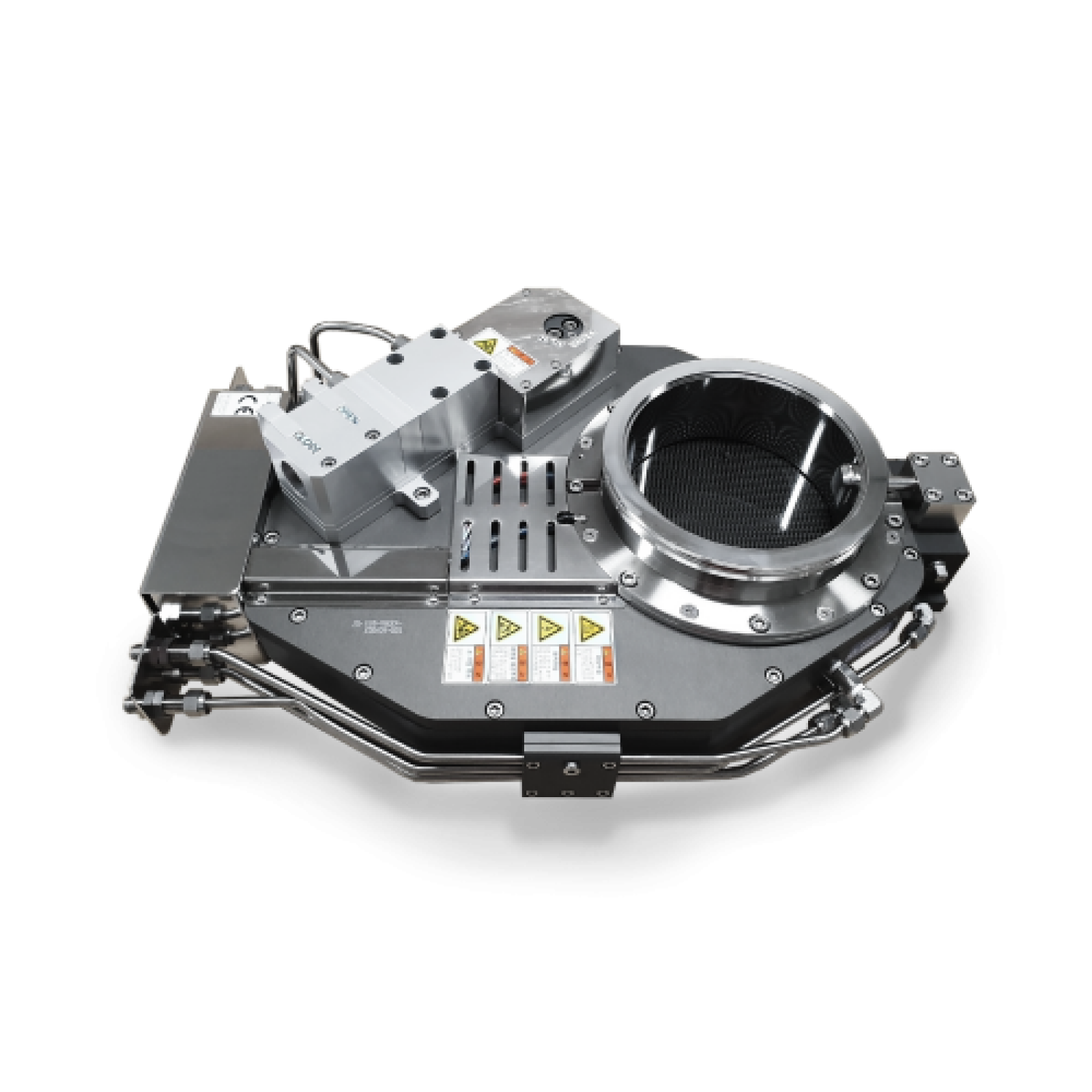

Powder Protection Gate Valve (DPV)
DPV Pendulum 80~200
Heating / No Heating
- Feature
- Very High Speed Valve
- Very Compact Design
- Very Low Vibration
- High Performance Heating Impact
- General Specification
- Body Material : AI 6061
- Flange, Pipe : SUS 304
- Leak Rate : < 5x10⁻⁸ mbar. l/s (5x10⁻⁹ Pa m³/s)
- Vibration : < 0.1㎨
- Operation : 4~8 bar
- Warranty : 100,000 Cycle
- Flange Type : ISO-K, ISO-F

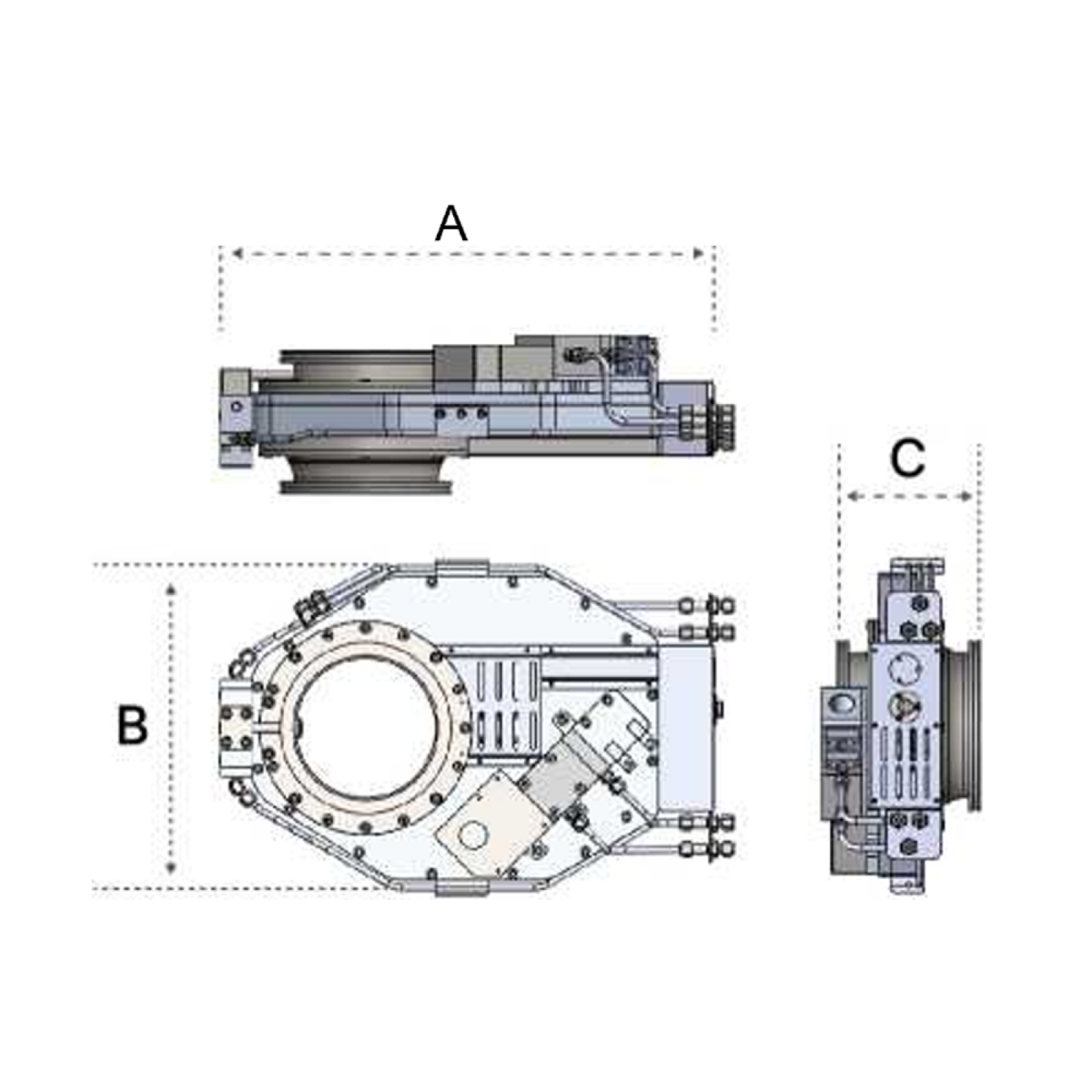

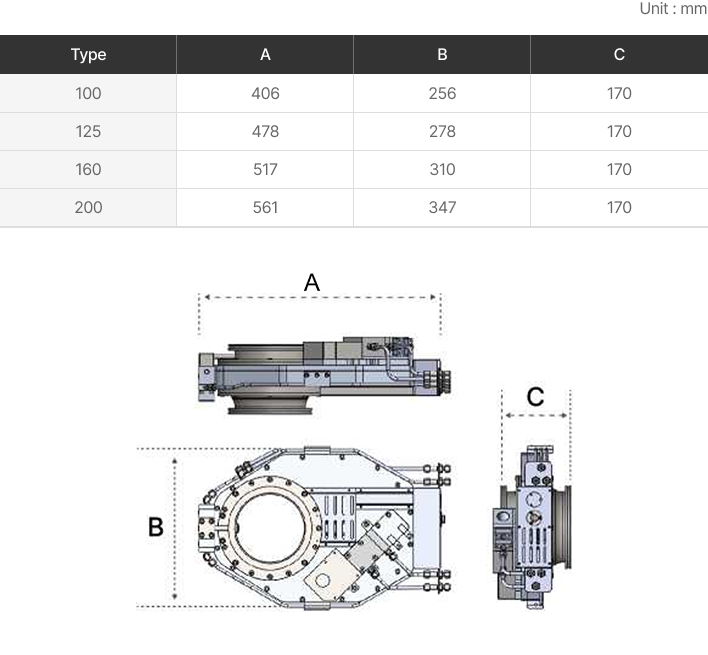

- Dimension
-
